Integrated Tubes T8 Led Wall Light Led Tube Integration Light T5 T8 For Office
Key words of Integrated T8 Tubes:
Led energy saving;
Diverse styles;
PC material + aluminum cover;
High brightness and light transmission;
Easy installation;
Three light color uses (warm light, neutral light, white light) will makes different feeling for you.
Features of Integrated T5 Tubes:
1. Transmittance ＞85%, gentle lighting & uniform, no dazzing and durable, no yellow during aging;
2. Epistar SMD2835 LED Chip, high lumen output 100lm/w, no dark spots, low light decay;
3. Driver: intelligent IC constant current driver:
a) Overload protection;
b) Short circuit protection;
c) Under voltage protection;
d) PF＞0.95 (power supply more efficient);
e) Aluminum PCB is better for heat cooling and longer lifespan;
f) Ra＞80;
g) Aluminum body: 0.72mm thickness aluminum body;
h) Color rendering index ≥ 80, comfortable light color, simulating natural light to restore true color.

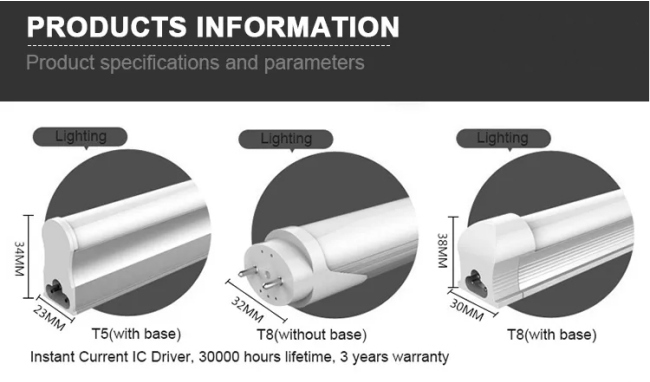

The parameter of Led Tube Lamp T5 T8:
| ModeL | Length | Led Chip | Bead | Voltage | CCT | RA | Material | Light Effect |
| t8 tube-1.2m-18w | 1200MM | SMD2835 | 96PCS | 85-265V | 2700-6500K | 80 | Aluminum+pc | 100LM/W |
| t8 tube-0.9m-13w | 900MM | SMD2835 | 66PCS | 85-265V | 2700-6500K | 80 | Aluminum+pc | 100LM/W |
| t8 tube-0.6-9W | 600MM | SMD2835 | 44PCS | 85-265V | 2700-6500K | 80 | Aluminum+pc | 100LM/W |
| Model | ZK-TU102-0.6m | ZK-TU102-0.9m | ZK-TU102-1.2m | ZK-TU102-1.5m |
| Wattage | 9W | 13W | 18W | 24W |
| LED Qty | 46pcs | 70pcs | 96pcs | 120pcs |
Size
(L*W*Hmm) | D26*L600mm | D26*L900mm | D26*L1200mm | D26*L1500mm |
| Shell material | Aluminum |
| lens | Milky |
| AC input | 85-265V |
| LED type | SMD2835 |
| Luminous output | 120lm/w |
| Power factor | >0.9 |
| Beam angle | 180° |
| CRI | >80 |
| Color Temp. | 2800-6500K |
| Lifespan | 50000 hours |
| Warranty | 3 years |

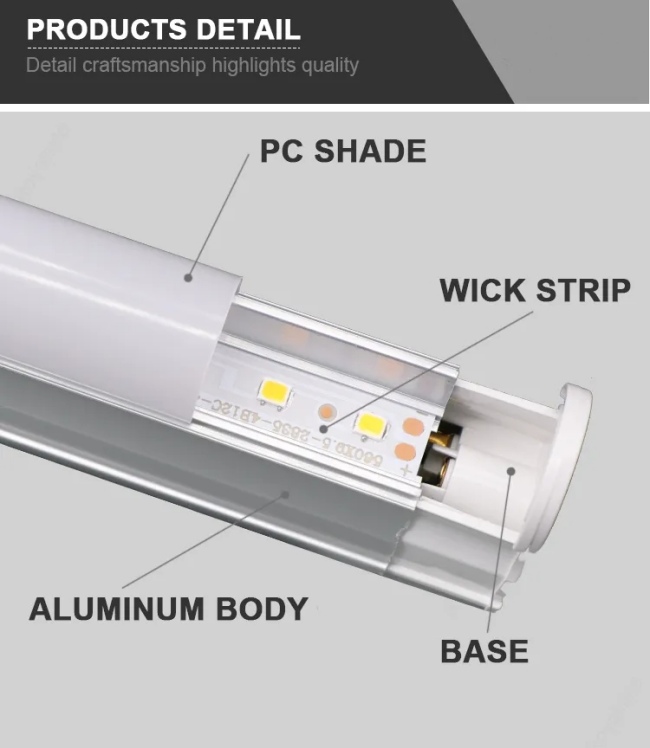

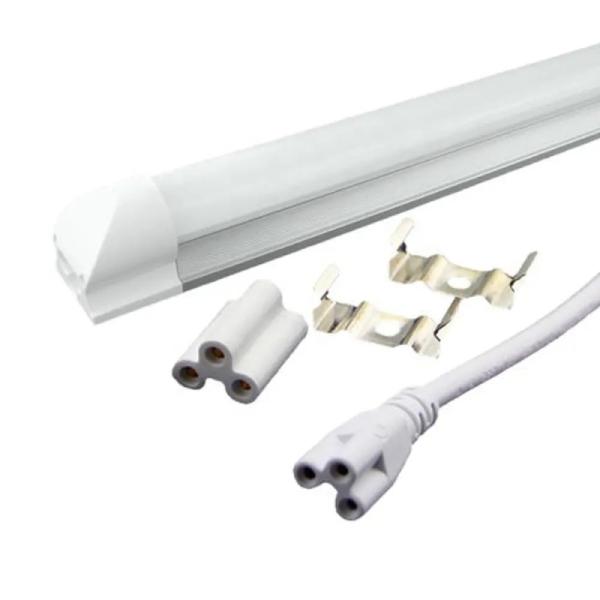

The photos of T5 T8 Led Tube Light / Led Wall Light:
